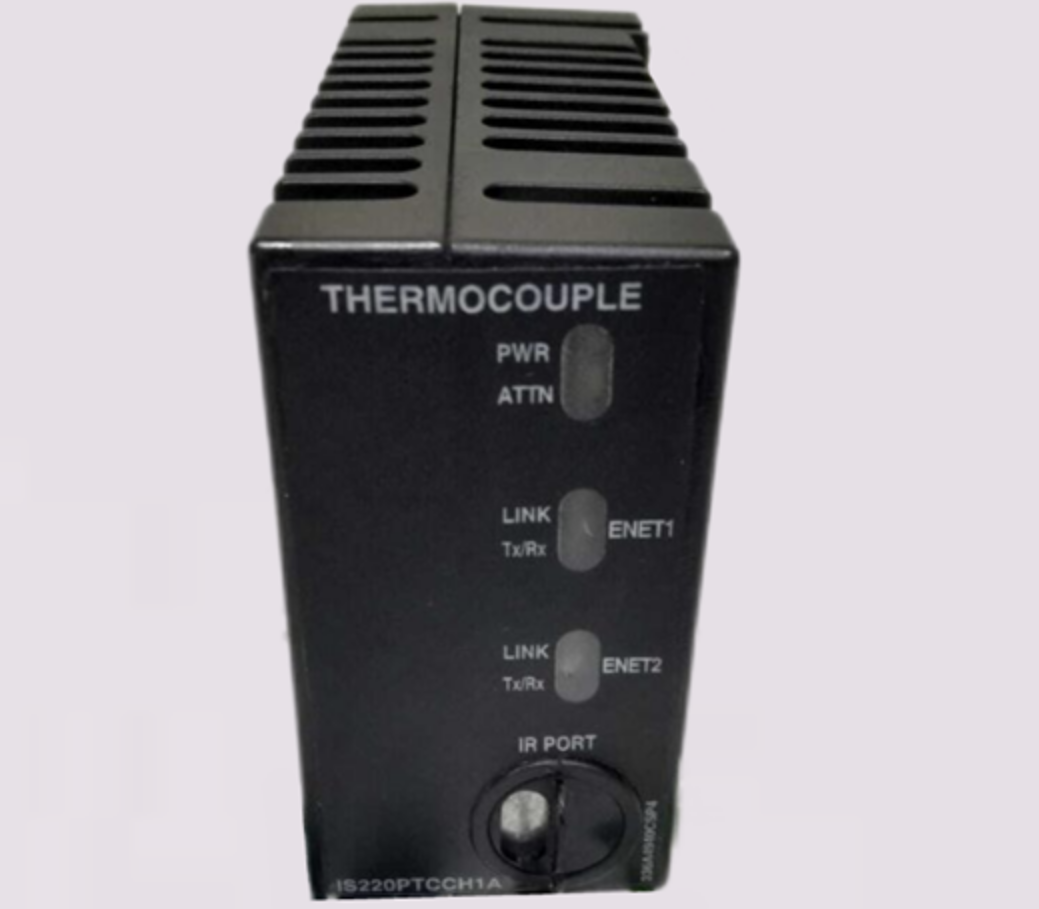

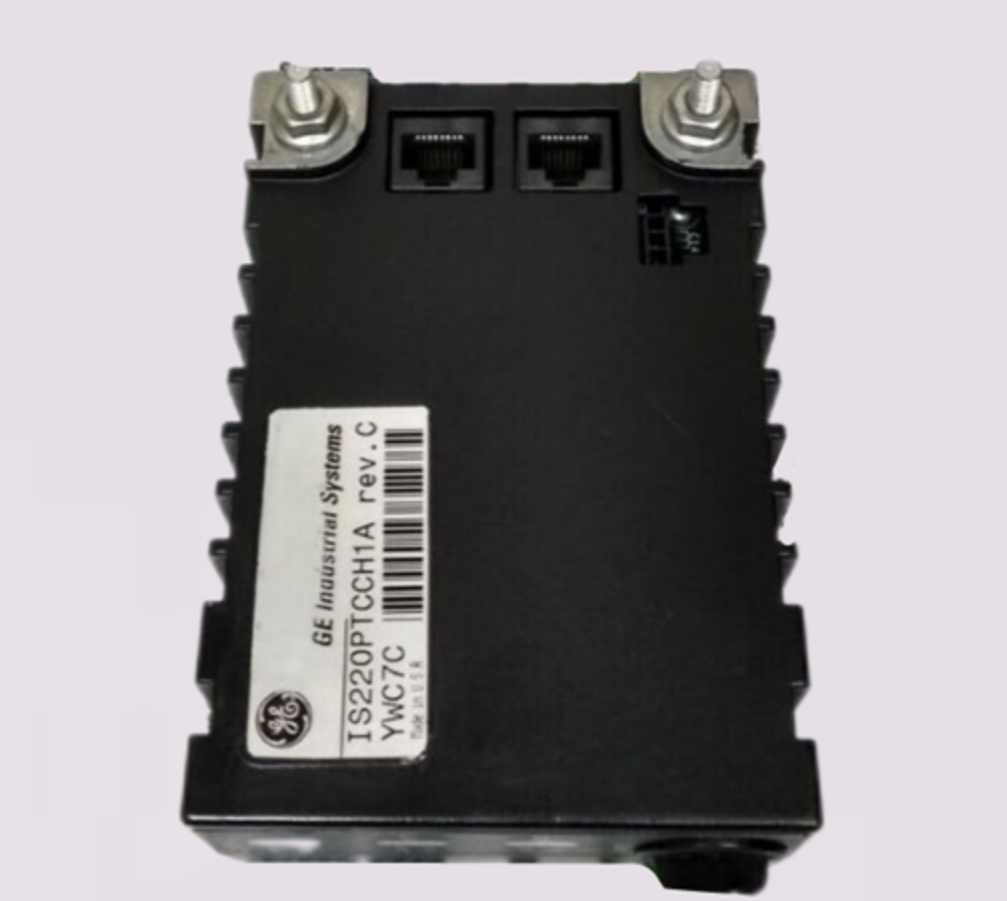

GE IS220PTCCH1A Thermocouple Input Module
Description
| Manufacture | GE |
| Model | IS220PTCCH1A |
| Ordering information | IS220PTCCH1A |
| Catalog | MARK VIe |
| Description | GE IS220PTCCH1A Thermocouple Input Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
3.17 PTCC and YTCC Thermocouple Input Modules The following hardware combinations are approved for use in hazardous locations:
• Mark VIe Thermocouple input pack IS220PTCCH1A or IS220PTCCH1B with terminal boards (accessories) IS200STTCH1A, IS200STTCH2A, IS200TBTCH1B, or IS200TBTCH1C
• Mark VIeS Safety Thermocouple input pack IS220YTCCS1A with terminal boards IS200STTCS1A, IS400STTCS1A, IS200STTCS2A, IS400STTCS2A, IS200TBTCS1B, IS200TBTCS1C, or IS400TBTCS1C 3.17.1 Electrical Ratings Item Min Nominal Max Units Power Supply Voltage 27.4 28.0 28.6 V dc Current — — 0.16 A dc Thermocouple Inputs Voltage -8 — 45 mV d
