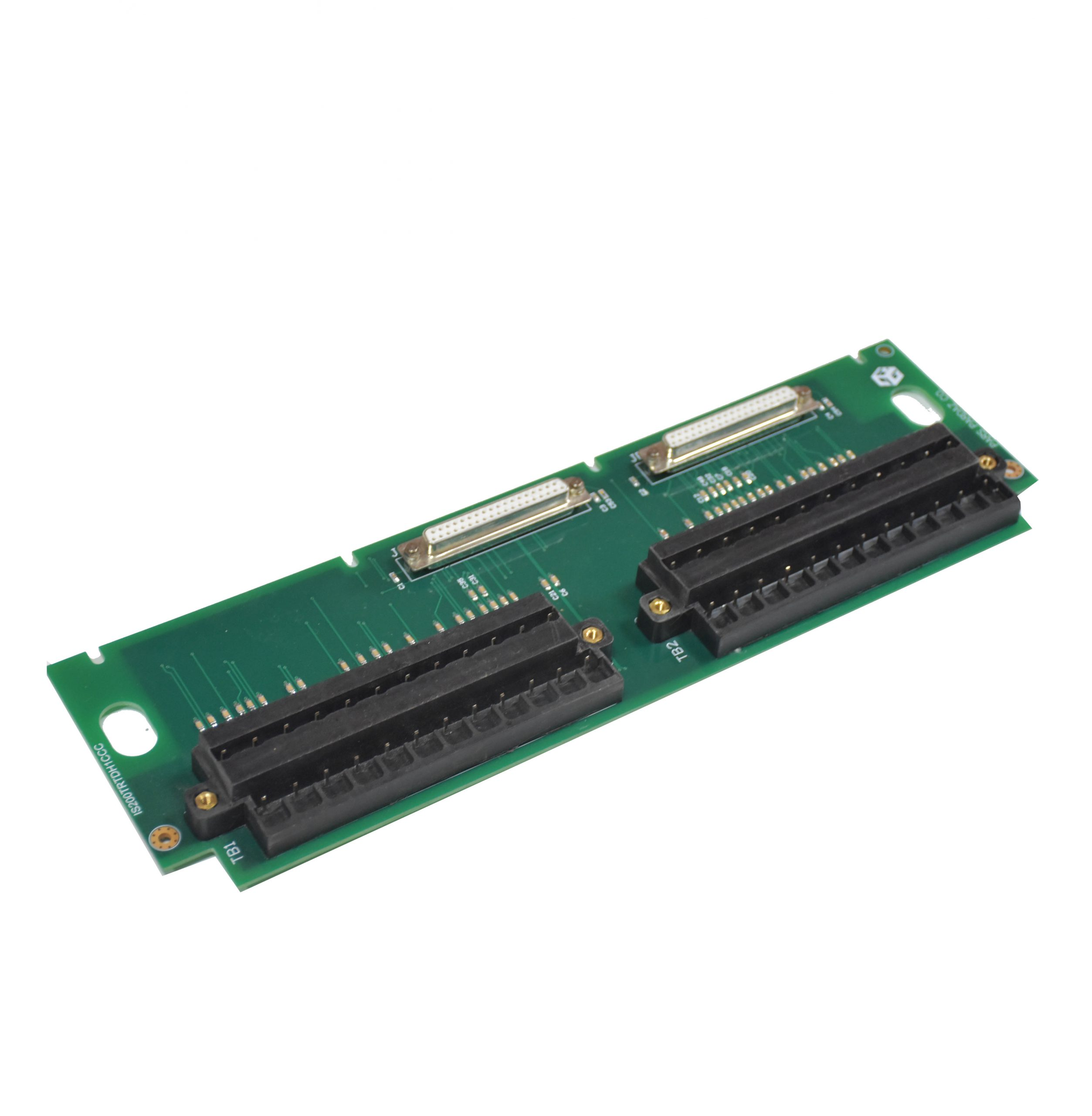

GE IS200TRTDH1C IS200TRTDH1CCC RTD Terminal Board
Description
| Manufacture | GE |
| Model | IS200TRTDH1CCC |
| Ordering information | IS200TRTDH1CCC |
| Catalog | Mark VI |
| Description | GE IS200TRTDH1CCC RTD Terminal Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
IS200TRTDH1CCC is a RTD Terminal Board developed by GE. It is a part of the Mark VI control system.
There are 16 three-wire RTD inputs on the RTD Input (TRTD) terminal board. Two barrier-type terminal blocks are connected to these inputs by wiring.
1.The TRTDH1B is a TMR variant that uses six DC-type connectors to fan out the signals to three VRTD boards.
2.A simplex board called TRTDH1C has two DC-type connectors for VRTD.
3.TRTDH1D is a simplex board with two PRTD, normal scan DC-type connections.
4.The TRTDH2D is a simplex board with two PRTD, quick-scan DC-type connectors.
