GE IS200TRLYH1B Relay Terminal Board
Description
| Manufacture | GE |
| Model | IS200TRLYH1B |
| Ordering information | IS200TRLYH1B |
| Catalog | Mark VI |
| Description | GE IS200TRLYH1B Relay Terminal Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The IS200TRLYH1B is a Relay Terminal Board developed by GE under the Mark VIe series.

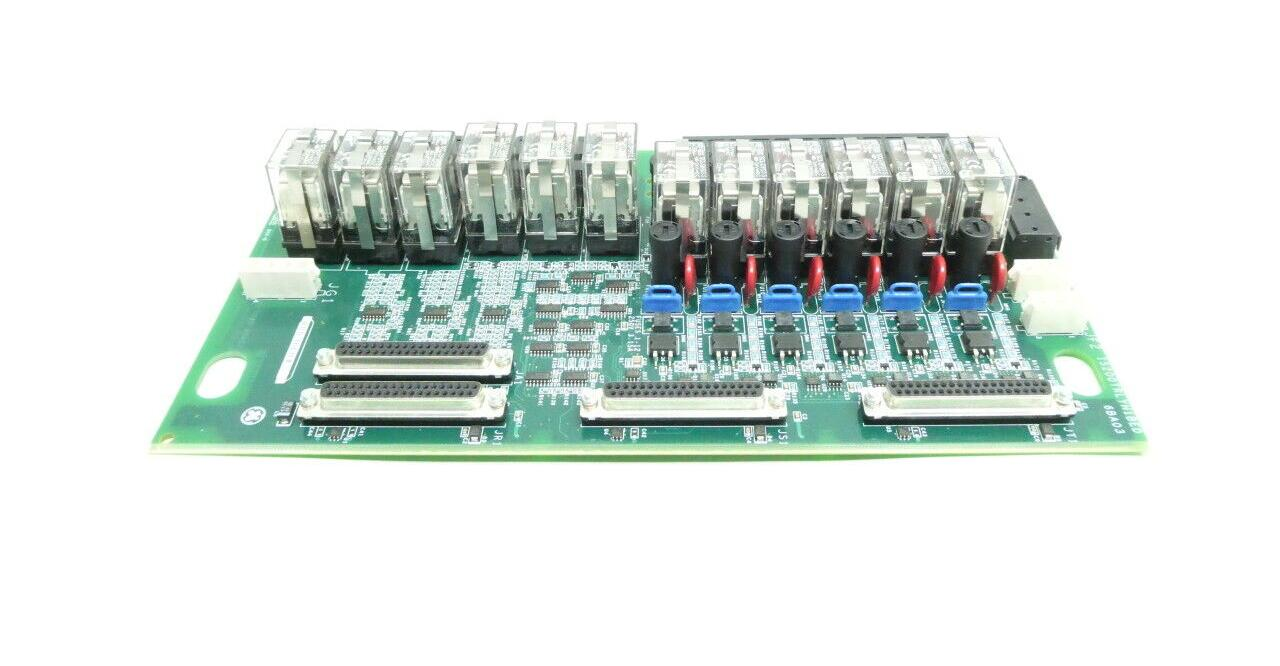

There are 12 plug-in magnetic relays on the Relay Output with Coil Sensing (TRLY1B) terminal board. The first six relay circuits can be set up with jumpers to drive external solenoids or dry, Form-C contact outputs.
For field solenoid power, a basic 125 V dc or 115/230 V ac source or an optional 24 V dc source with personal jumper-selectable fuses and onboard suppression can be offered.
The next five relays (7–11) are isolated Form-C contacts that are not powered. An isolated Form-C contact is used on output 12 for specialized uses like ignition transformers.
