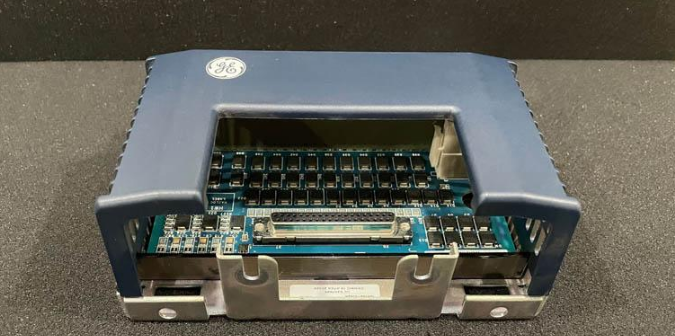

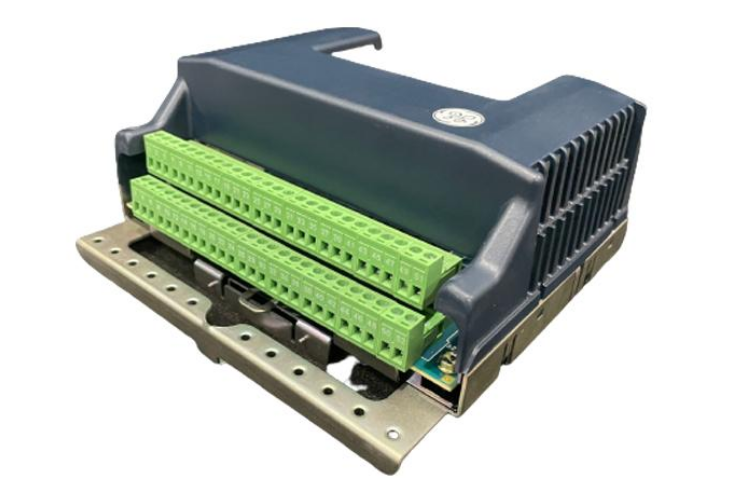

GE IS410STCIS2A (IS400STCIS2AFF) STCI Terminal Board
Description
| Manufacture | GE |
| Model | IS410STCIS2A |
| Ordering information | IS400STCIS2AFF |
| Catalog | Mark Vie |
| Description | GE IS410STCIS2A (IS400STCIS2AFF) STCI Terminal Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
Contact Input Module
The Mark* VIeS Functional Safety Contact Input module provides an interface between discrete contact process sensors (24 discrete inputs) and Mark VIeS Safety control logic. The Contact Input module consists of two orderable parts: the contact input I/O pack and the contact input terminal board. All safety contact input modules use the same I/O pack, IS420YDIAS1B. Multiple DIN-rail mounted terminal boards are available to provide the necessary contact voltages, redundancy, and terminal block styles.
The Contact Input module is available in both Simplex and Triple Modular Redundant (TMR) configurations. Users can select the configuration that best addresses their needs for availability and SIL level. This document discusses the Simplex Contact Input (STCI) terminal board and the Contact Input (TBCI) terminal board. The TBCI terminal board offers TMR capability but it can also be used in a Simplex configuration with a single
YDIA I/O pack. In a TMR I/O configuration, the controller performs 2-out-of-3 voting on
the discrete inputs. In a Dual I/O configuration, the controllers listen to the first reporting
YDIA I/O pack (no voting).
