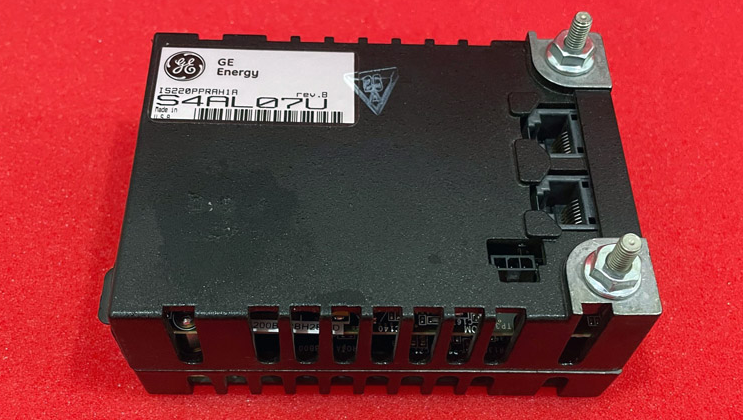

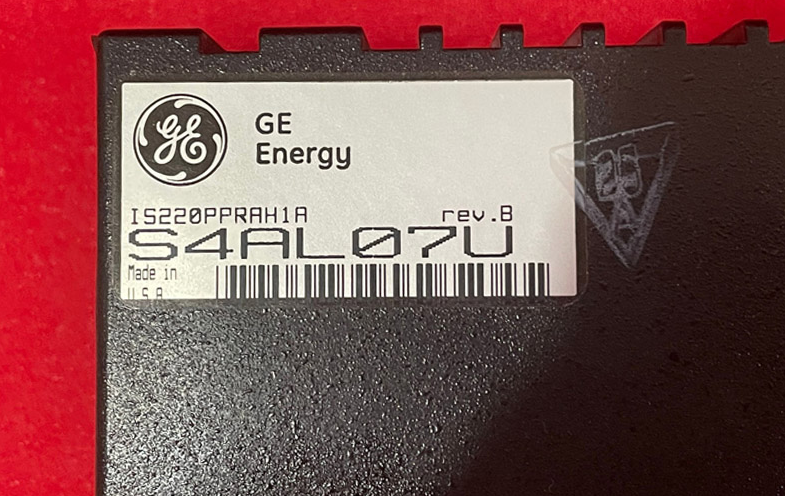

GE IS220PPRAH1A Emergency Turbine Protection Module
Description
| Manufacture | GE |
| Model | IS220PPRAH1A |
| Ordering information | IS220PPRAH1A |
| Catalog | MARK VIe |
| Description | GE IS220PPRAH1A Emergency Turbine Protection Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
3.11 PPRA Emergency Turbine Protection Module
The following I/O pack and terminal board combinations are approved for use in hazardous locations:
• Turbine protection I/O pack IS220PPRAH1A
with terminal board (accessory) IS200TREAH1A and daughter board (accessory) IS200WREAH1A
• Turbine protection I/O pack IS220PPRAS1A or IS220PPRAS1B
with terminal board (accessory) IS200TREAS1A and daughter board (accessory) IS200WREAS1A
3.11.1 Electrical Ratings
Item Min Nominal Max Units
Power Supply
Voltage 27.4 28.0 28.6 V dc
Current — — 0.5 A dc
Contact Inputs (TREA)
Voltage 0 — 32 V dc
Voltage Detection Inputs (TREA)
Voltage 16 — 140 V dc
E-stop Input (TREA)
Voltage 18 — 140 V dc
Speed Inputs (TREA, WREA)
Voltage -15 — 15 V dc
Contact Outs 1-2 (TREA)
Voltage — — 28 V dc
Current — — 7 A dc
Contact Out 3 (WREA)
Voltage — — 28 V dc
Current — — 5 A dc
Contact Wetting Outputs (WREA)
Voltage — — 32 V dc
Current — — 13.2 mA dc
