GE IS230SNSCH2A IS200SSCAH2AGD Communication Terminal Board
Description
| Manufacture | GE |
| Model | IS200SSCAH2AGD |
| Ordering information | IS200SSCAH2AGD |
| Catalog | Mark VIe |
| Description | GE IS230SNSCH2A IS200SSCAH2AGD Communication Terminal Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

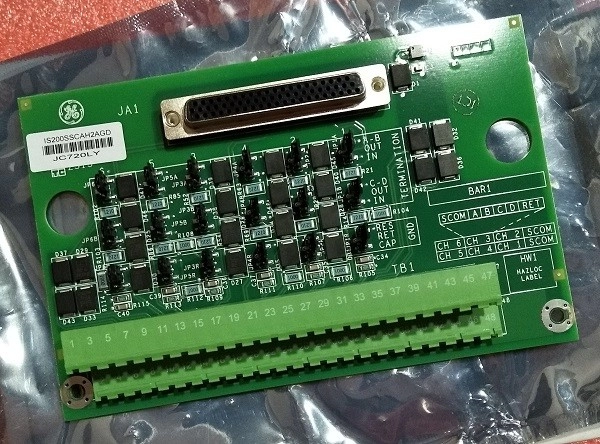

IS200SSCAH2AGD is a Communication Terminal Board manufactured and designed by GE as part of Mark VI series.
It’s a small board with only very few parts and a single terminal block to complete it.
This terminal block contains forty eight screw connects, separated into two lines of 24, for protecting and/or terminating wire connections.
The Simplex Serial Communication Input/Output (SSCA) terminal board is a small serial communication board with up to six communication channels.
Each channel can be set to send RS-232C, RS-485, or RS-422 signals. The PSCA I/O pack is compatible with the SSCA.
The I/O pack connects to the controller via Ethernet and plugs into the DC-37 pin connector.
