Invensys Triconex 3604E TMR Digital Output Modules

short description:

Item no: Invensys Triconex 3604E

brand: Invensys Triconex

Delivery time: In Stock

Payment: T/T

shipping port: xiamen

price:$1500


Product Detail

Product Tags

Description

Manufacture Invensys Triconex
Model TMR Digital Output Modules
Ordering information 3604E
Catalog Tricon Systems
Description Invensys Triconex 3604E TMR Digital Output Modules
Origin United States (US)
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg

Details

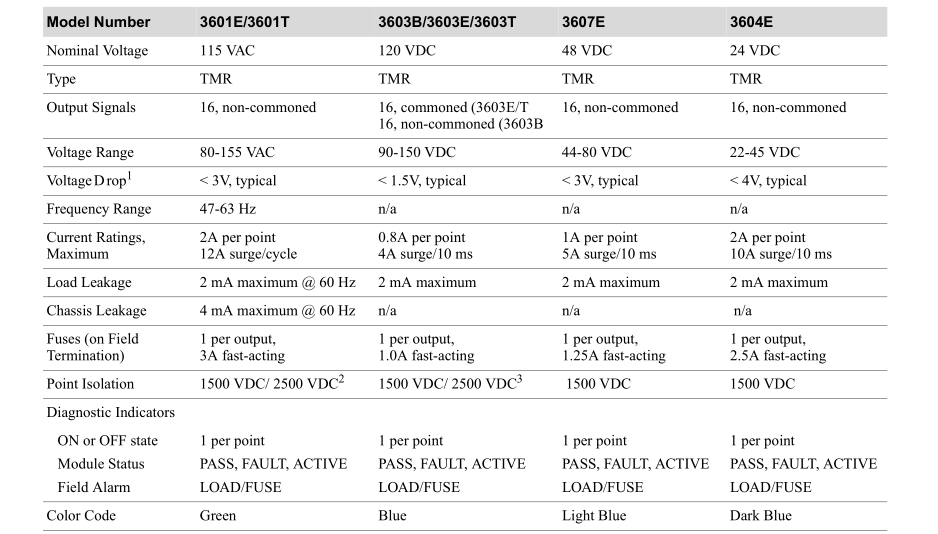

TMR Digital Output Modules

A TMR digital output (DO) module receives output signals from the main processors on each of three channels.

Each set of three signals is then voted by special quadruplicated output circuitry on the module. The circuitry produces one voted output signal and passes it to the field termination. The quadruplicated voter circuitry provides multiple redundancy for all critical signal paths, guaranteeing safety and maximum availability.

Each TMR digital output module has a voltage-loopback circuit which verifies the operation of each output switch independently of the presence of a load and determines whether latent faults exist. Failure of the detected field voltage to match the commanded state of the output point activates the

LOAD/FUSE alarm indicator.

In addition, ongoing diagnostics are performed on each channel and circuit of a TMR digital output module. Failure of any diagnostic on any channel activates the Fault indicator, which in turn activates the chassis alarm signal. The Fault indicator merely indicates a channel fault, not a module failure. The module is guaran-teed to operate properly in the presence of a single fault and may continue to operate properly with certain kinds of multiple faults.

All TMR digital output modules support hot-spare capability, and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis.

Digital outputs are designed to source the current to field devices, so field power must be wired to each output point on the field termination.
