Invensys Triconex 3625C1 Supervised/Non- Supervised Digital Output Modules

short description:

Item no: Invensys Triconex 3625C1

brand: Invensys Triconex

Delivery time: In Stock

Payment: T/T

shipping port: xiamen


Product Detail

Product Tags


Manufacture Invensys Triconex
Model Supervised/Non- Supervised Digital Output Modules
Ordering information 3625C1
Catalog Tricon Systems
Description Invensys Triconex 3625C1 Supervised/Non- Supervised Digital Output Modules
Origin United States (US)
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg


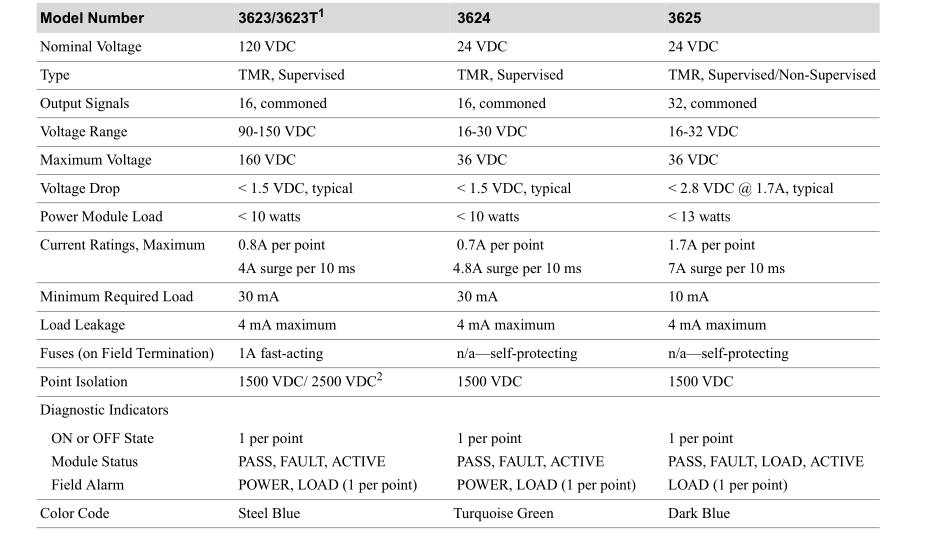

16-Point Supervised and
32-Point Supervised/Non-Supervised Digital Output Modules

Designed for the most critical control programs, supervised digital output (SDO) modules meet the needs of systems whose outputs remain in a single state for extended periods of time (in some applications, for years). An SDO module receives output signals from the main processors on each of three channels. Each set of three signals is then voted upon by a fully fault-tolerant quadruplicated output switch whose elements are power transistors, so that one voted output signal is passed to the field termination.

Each SDO module has voltage and current loopback circuitry coupled with sophisticated online diagnostics that verify the operation of each output switch, the field circuit and the pres-ence of a load. This design provides complete fault coverage without the need to influence the output signal.

The modules are called “supervised” because fault coverage is extended to include potential field problems. In other words, the field circuit is super-vised by the SDO module so that the following field faults can be detected:
• Loss of power or blown fuse
• Open or missing load

• A field short resulting in the load being energized in error
• A shorted load in the de-energized state

Failure to detect field voltage on any output point energizes the power alarm indicator. Failure to detect the presence of a load energizes the load alarm indi-cator.
All SDO modules support hot-spare modules and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane.
