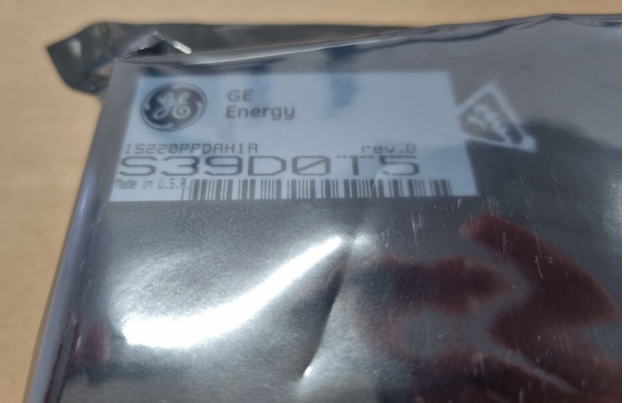

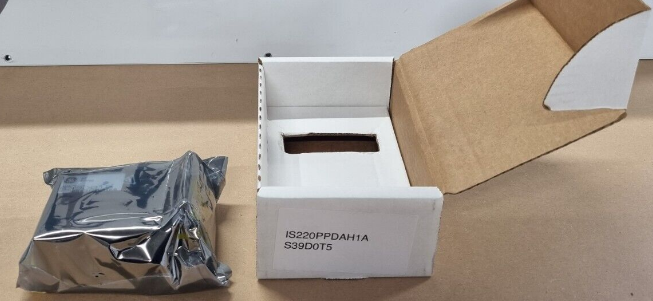

GE IS220PPDAH1A Power Distribution System Feedback
Description
| Manufacture | GE |
| Model | IS220PPDAH1A |
| Ordering information | IS220PPDAH1A |
| Catalog | Mark Vie |
| Description | GE IS220PPDAH1A Power Distribution System Feedback |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
PPDAPowerDistributionSystemFeedback
Thefollowinghardwarecombinationsareapprovedforuseinhazardouslocations:
• MarkVIePowerDistributionsystemfeedbackI/OpackIS220PPDAH1AorISx2yPPDAH1Bwithaccessory
ISx0yJPDSG1AorIS40yJPDGH1A(wherex=2or4andy=0or1)
4.5.1 ElectricalRatings
PPDAPowerSupply
Item Min Nominal Max Units
Voltage
PPDAH1B:22.5
PPDAH1A:27.4
PPDAH1B:24.0/28.0
PPDAH1A:28.0
28.6 Vdc
Current — — 0.24 Adc
ISx2yPPDAH1BusedwithAccessoryIS40yJPDGH1A
Item Min Nominal Max Units
ControlPowerInput(JR,JS)
Voltage 22.5 24.0/28.0 28.6 Vdc
Currentat70°C
(158°F)
— — 36 Adc
Currentat55°C
(131°F)
— — 40 Adc
ControlPowerOutputs(J1-J4)
Continuous
Current
— — 7 Adc
ControlPowerOutputs(JC1-JC4)
Continuous
Current
— — 1.5 Adc
Continuous
Currentwith
Ambient55°C
(131°F)
— — 2 Adc
