GE IS200EPDMG1ABA IS200EPDMG1BAA EX2100 Power Distribution Module
Description
| Manufacture | GE |
| Model | IS200EPDMG1ABA |
| Ordering information | IS200EPDMG1ABA |
| Catalog | Mark VI |
| Description | GE IS200EPDMG1ABA IS200EPDMG1BAA EX2100 Power Distribution Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

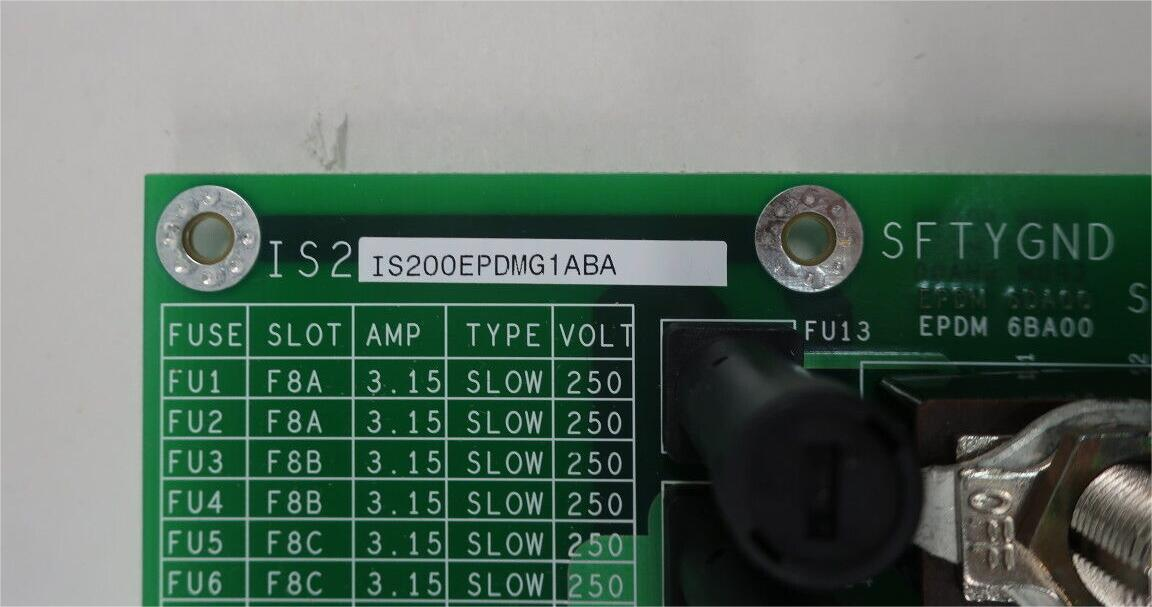

The IS200EPDMG1ABA is a Static Exciter Power Distribution Module (EPDM) developed by GE,it is Mark VI systems.
The EPDM provides power for the control, I/O, and protection boards of the exciter.
It is mounted on the side of the EPBP and receives 125 V dc power from the stationbattery and accepts one or two 120 V ac power inputs for backup.
All power inputsare through a board mounted terminal block and are filtered. Each ac supply is recti.fied to 125 V dc in an external ac-to-de converter and the resulting two or three dcvoltages are diode coupled through external diodes to create the de source powersupply.
Individual power supply outputs to each ofthe exciter boards are fused, have anon/off toggle switch (except EXTB) and a green LED indicator to show power avail-ability.
The outputs supply up to three EGPA boards, EXTB, and three EPSMs serv-ing three controllers. Aseparate connector is provided for each output and these arewired to the EPBP for distribution.
