EPRO PR6423/010-140+CON021 8mm Eddy Current Sensor
Description
| Manufacture | EPRO |
| Model | PR6423/010-140+CON021 |
| Ordering information | PR6423/010-140+CON021 |
| Catalog | PR6423 |
| Description | EPRO PR6423/010-140+CON021 8mm Eddy Current Sensor |
| Origin | Germany (DE) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
Dimensions

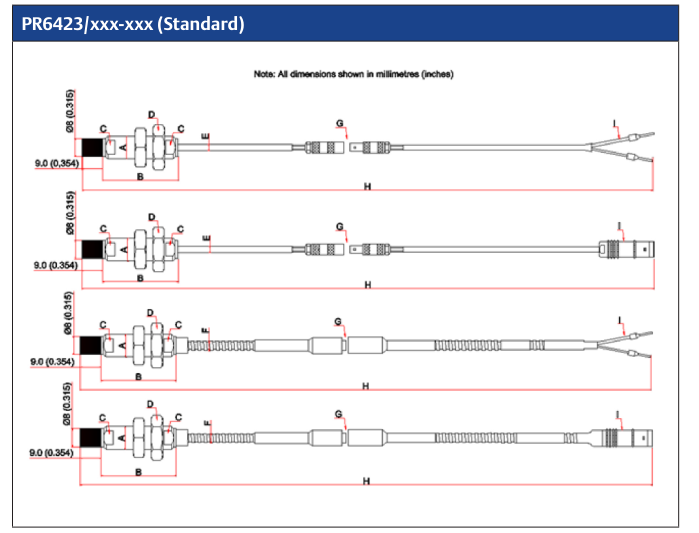

PR6423/xxx-xxx (Standard)
A. Case thread, M10x1 or 3/8-24UNF
B. Case Length
C. Wrench flats, SW 8 mm for M10 threads, WS 5/16 in for 3/8-24 UNF threads
D. SW 17 mm for M10 threads, SW 9-16 in for 3/8-24UNF threads
E. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius
25 mm (0.984 in)
F. Armored cable diameter 6 mm (0.236 in), minimum bending radius
35 mm (1.378 in)
G. Optional Adapter Plug after 1m cable from Sensor
H. Cable Length (Tolerances 0... +10%)
I. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end
