GE IS200TTURH1BCC IS200TTURH1BEC Turbine Termination Board
Description
| Manufacture | GE |
| Model | IS200TTURH1BCC |
| Ordering information | IS200TTURH1BCC |
| Catalog | Mark VI |
| Description | GE IS200TTURH1BCC IS200TTURH1BEC Turbine Termination Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

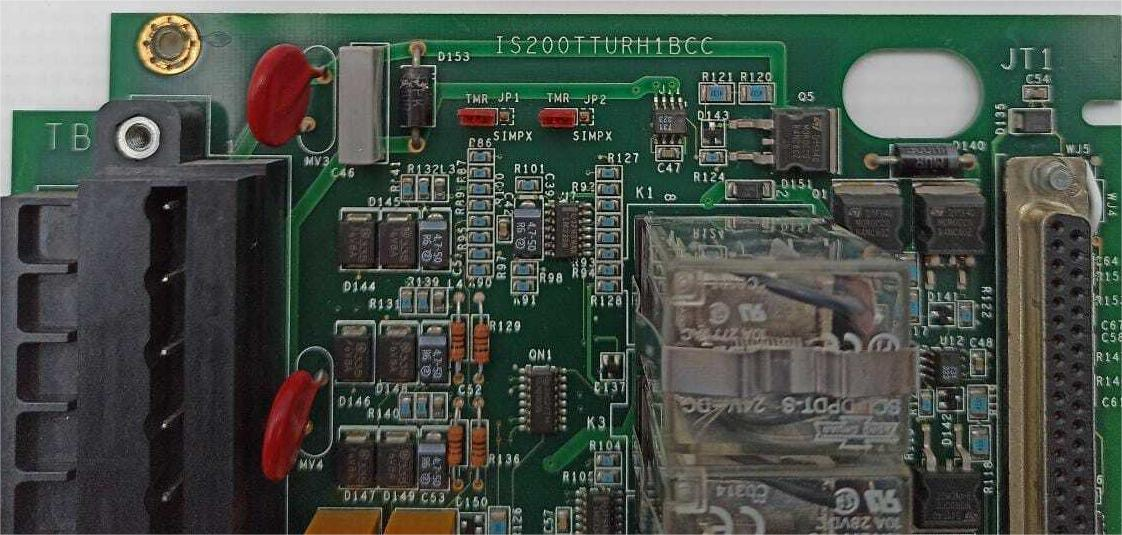

IS200TTURH1BCC is a Turbine Termination Board developed by GE. It is a part of Mark VI control system.
The Turbine Terminal Board is a component that interfaces with the turbine I/O processor, facilitating various inputs and outputs essential for turbine operation.
TTUR features three relays K25, K25P, and K25A. The closure of all these relays is necessary to provide 125 V DC power required for closing the main breaker 52G, ensuring seamless operation.
I/O:
1.Pulse Rate Devices: Incorporates 12 passive pulse rate devices that sense a toothed wheel, enabling the measurement of turbine speed.
2.Generator and Bus Voltage Signals: Signals from potential transformers are utilized to monitor generator voltage and bus voltage.
3.125 V DC Output: Provides a 125 V DC output specifically designated for the main breaker coil, essential for automatic generator synchronizing.
4.Shaft Voltage and Current Sensors: Inputs from shaft voltage and current sensors are processed by TTUR to measure induced shaft voltage and current.
