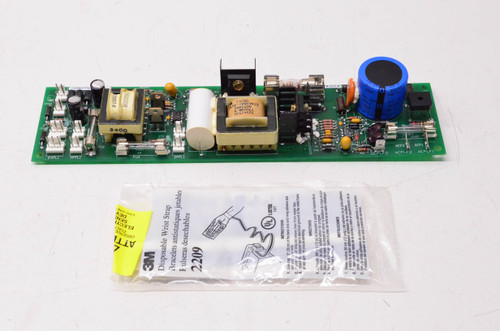

GE IS200HFPAG2ADC Fan/Xfrmr Card
Description
| Manufacture | GE |
| Model | IS200HFPAG2ADC |
| Ordering information | IS200HFPAG2ADC |
| Catalog | Mark VI |
| Description | GE IS200HFPAG2ADC Fan/Xfrmr Card |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The GE IS200HFPAG2ADC is a Fan/Xfrmr Card developed by General Electric (GE) to accommodate Mark VI systems.
Application areas:
This board is designed as a power board in high frequency applications. It is mainly used to receive AC or DC input voltage and convert it into an output voltage, such as a square wave, for powering circuits that have been isolated from high voltage.
This board is suitable for The drive system is located in different cabinets at different locations and is usually installed near the rack or fan unit.
Functions and features:
The board receives voltage input via four plug-in connectors and voltage output via eight plug connectors.
Four fuses are built in to protect the circuit board circuitry, and it is equipped with an MOV or metal oxide varistor for circuit protection.

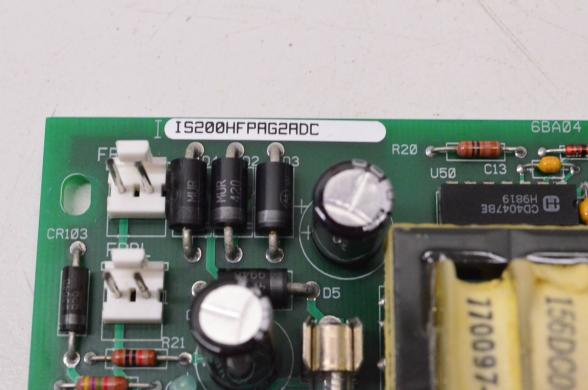

The board contains two heat sinks, two transformers, two LED transistors and three high voltage capacitors, as well as capacitors and resistors made of other materials.
