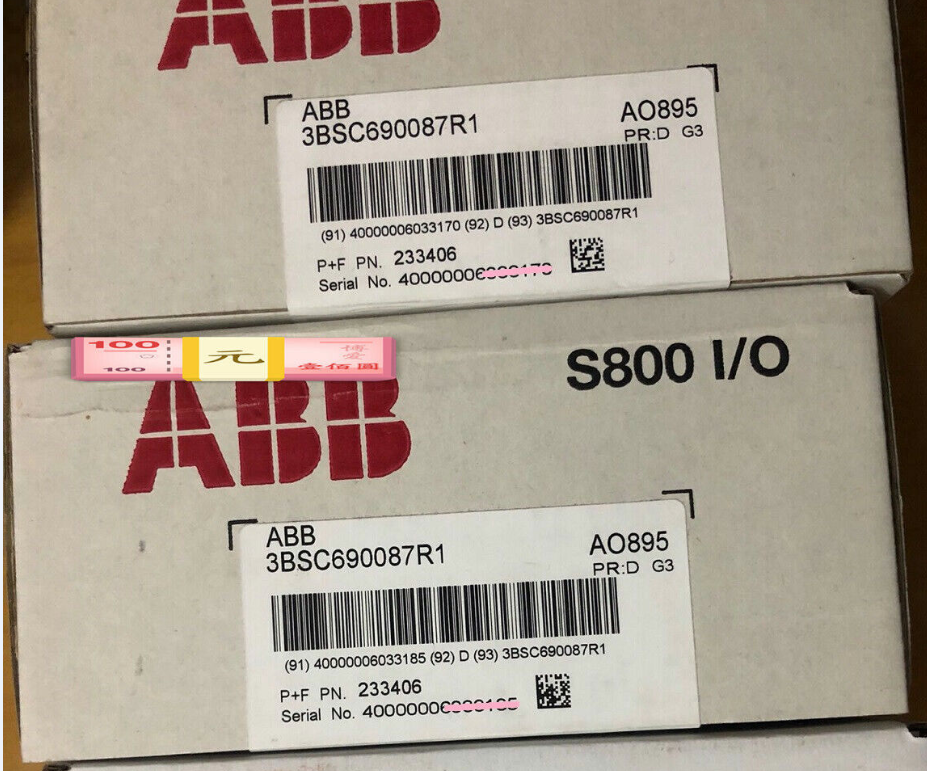

ABB AO895 3BSC690087R1 Analog Output

short description:

Item no: AO895 3BSC690087R1

brand: ABB


Delivery time: In Stock

Payment: T/T

shipping port: xiamen

Product Detail

Product Tags


Manufacture ABB
Model AO895
Ordering information 3BSC690087R1
Catalog 800xA
Description ABB AO895 3BSC690087R1 Analog Output
Origin Germany (DE)
Spain (ES)
United States (US)
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg

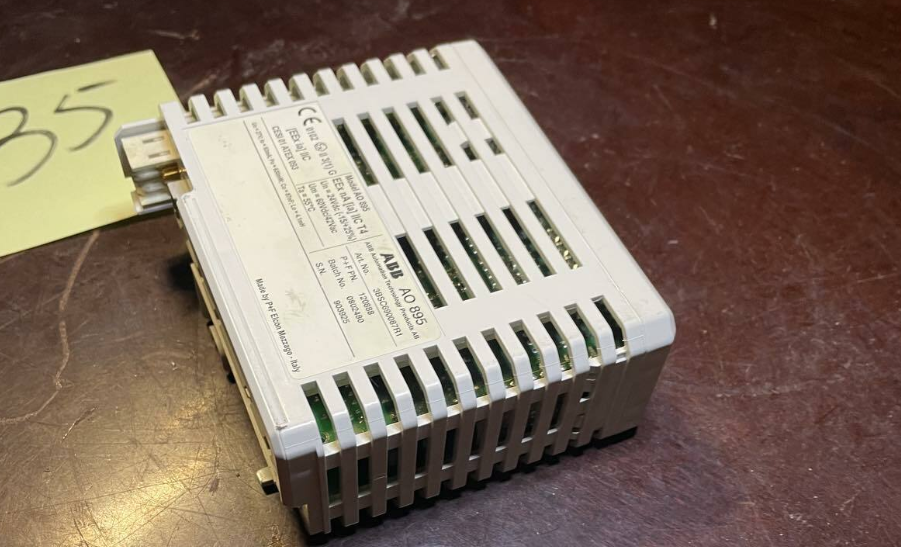

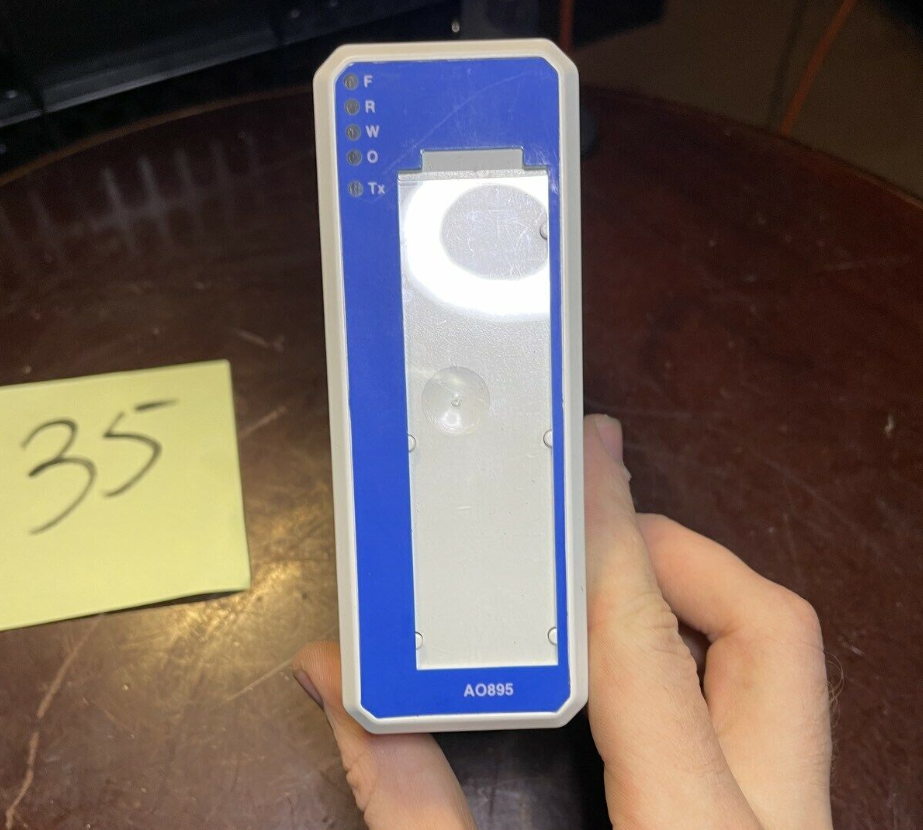

The AO895 Analog Output Module has 8 channels. The module includes Intrinsic Safety protection components and HART interface on each channel for connection to process equipment in hazardous areas without the need for additional external devices.

Each channel can drive up to 20 mA loop current into a field load such as an Ex certified current-to-pressure converter and is limited to 22 mA in overload conditions. All eight channels are isolated from the ModuleBus and power supply in one group. Power to the output stages is converted from the 24 V on the power supply connections.

Features and benefits


• 8 channels of 4...20 mA outputs.

• HART communication.

• 1 group of 8 channels isolated from ground.

• Power to drive Ex certified I/P actuators.
