Woodward 9907-164 505 Digital Governor

short description:

Item no: 9907-164

brand: Woodward


Delivery time: In Stock

Payment: T/T

shipping port: xiamen

Product Detail

Product Tags


Manufacture Woodward
Model 9907-164
Ordering information 9907-164
Catalog 505 Digital Governor
Description Woodward 9907-164 505 Digital Governor
Origin United States (US)
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg


The device listed here is the 9907-164 model, a part of the 505 and 505E Microprocessor based governor control units. These control module were designed specifically to operate steam turbines, as well as turbogenerators and turboexpander modules. The 505/505E series was developed, produced, and manufactured originally by Woodward Inc. Woodward is the oldest industrial manufacturer in America, founded in 1870, and still today remains one of the leading industrial companies in the market.

The 9907-164 unit is designed to control the steam turbine by operating a single extraction and/or the admission for the turbine. It utilizes the turbine’s split-stage actuators, either one or both of them, to drive the inlet valves for steam.

The 9907-164, like any of the 505 governor modules, is able to be configured in the field by the on-site operators. The menu driven software is controlled and altered by the operator control panel integrated onto the front facing side of the unit. The panel has a display of two lines for text, 24 characters per line.

The 9907-164 is outfitted with a series of discrete and analog inputs: 16 contact inputs (4 of them dedicated, 12 of them programmable), and then 6 programmable current inputs, at 4 to 20 mA.

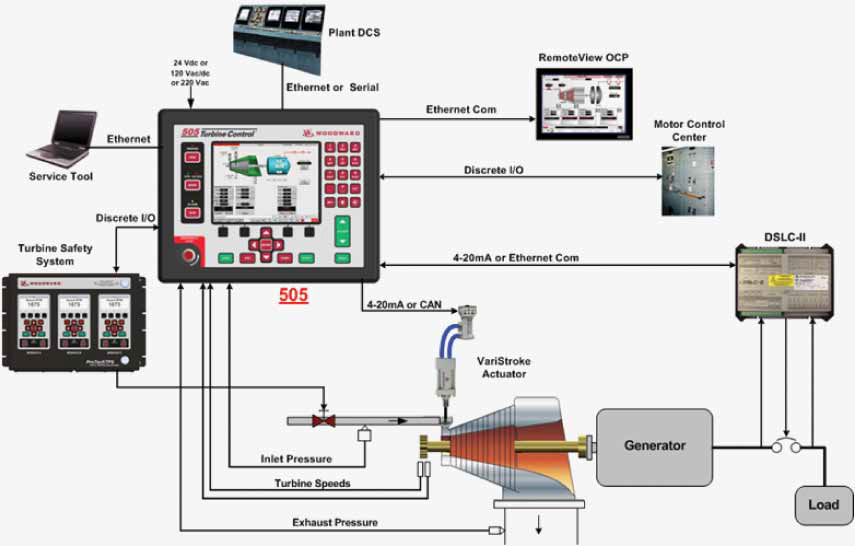

The 505 and 505XT are Woodward’s line of standard off-the-shelf controllers for operation and protection of industrial steam turbines. These user configurable steam turbine controllers include specifically designed screens, algorithms, and event recorders to simplify use in controlling industrial steam turbines or turbo-expanders, driving generators, compressors, pumps, or industrial fans.

Simple to use Simple to configure
Simple to troubleshoot
Simple to adjust (uses new OptiTune Technology)
Simple to connect (with Ethernet, CAN or Serial protocols)

The base 505 model is designed for simple single valve steam turbine applications where only basic turbine control, protection, and monitoring are required. The 505 controller’s integrated OCP (operator control panel), overspeed protection, and trip events recorder make it ideal for small steam turbine applications where overall system cost is a concern.

The 505XT model is designed for more complex single valve, single extraction or single admission steam turbine applications where more analog or discrete I/O (inputs and outputs) are required. Optional inputs and outputs can be connected to the 505XT controller via Woodward’s LinkNet-HT distributed I/O modules. When configured to control single extraction and/or admission based steam turbines, the 505XT controller’s field-proven ratio-limiter function ensures that interaction between the two controlled parameters (i.e., speed and extraction or inlet header and extraction) is correctly decoupled. By simply entering maximum levels and three points from the turbine’s steam map (operating envelope), the 505XT automatically calculates all PID-to-valve ratios and all turbine operation and protection limits.
