Woodward 5466-318 MICRONET TMR KERNEL P.S.
|Catalog||MicroNet Digital Control|
|Description||Woodward 5466-318 MICRONET TMR KERNEL P.S.|
|Origin||United States (US)|

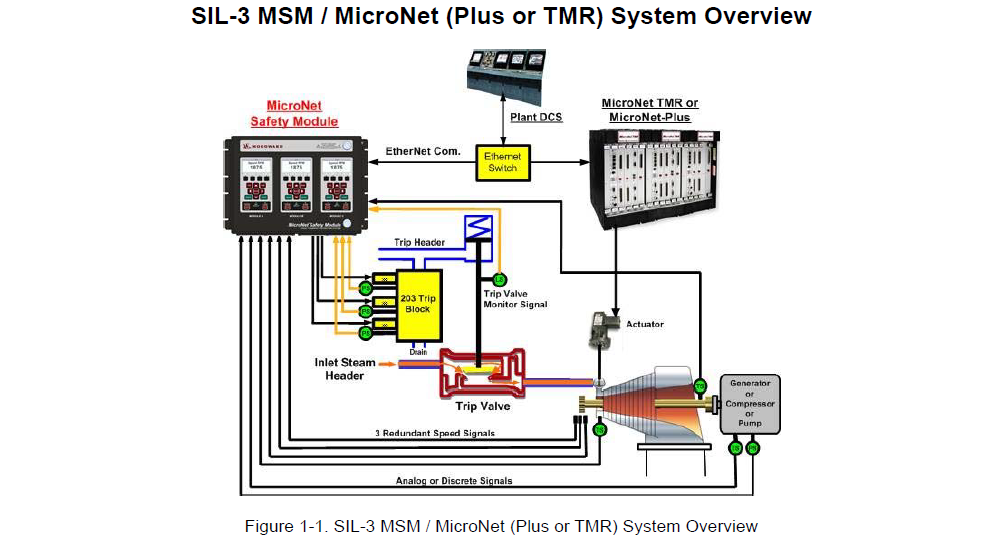

When used in conjunction with the MicroNet Safety Module (MSM), the MicroNet Plus and MicroNet TMR platforms have been certified by TUV as meeting SIL-1, SIL-2, or SIL-3 per IEC 61508 Parts 1-7,
“Function Safety of Electrical / Electronic / Programmable Electronic Safety Related Systems”. For
applications requiring compliance with IEC 61508, the guidelines outlined in this manual must be
Both the MicroNet Plus and MicroNet TMR platforms use configurable GAP/Coder software. The
examples shown within this manual are intended to show only one possible typical configuration. The
safety system design team will determine the final system/software architecture. A safety based design review and functional testing are recommended to verify the overall system design.
See MicroNet Safety Module Manual 26547V1 and 26547V2 for proper configuration of the MSM to meet the requirements of IEC61508.
