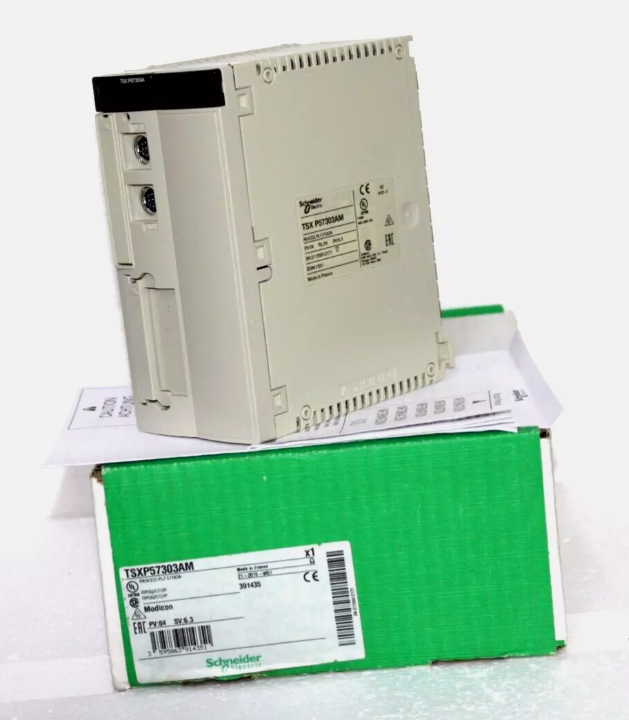

Schneider TSXP57303AM double-format PL7 processor 1000 mA IP20
Description
| Manufacture | Schneider |
| Model | TSXP57303AM |
| Ordering information | TSXP57303AM |
| Catalog | Quantum 140 |
| Description | Schneider TSXP57303AM double-format PL7 processor 1000 mA IP20 |
| Origin | Franch(FR) |
| HS Code | 3595861133822 |
| Dimension | 9.5cm*18cm*26cm |
| Weight | 0.646kg |
Details
| Range of product | Modicon Premium Automation platform |
|---|---|
| Product or component type | Double-format PL7 processor |
| Software designation | PL7 Junior/Pro |
| Number of racks | 16 4/6/8 slots 8 12 slots |
|---|---|
| Number of slots | 128 96 64 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 32 |
| Number of process control channel | 15 up to 45 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN connector (19.2/115 kbit/s) |
| Communication module processor capacity | 2 fieldbus modules (1 if CANopen used) 8 AS-Interface bus modules 1 CANopen 3 network module |
| Memory description | Internal RAM (with PCMCIA card) 80 Kwords data Internal RAM (without PCMCIA card) 64 Kwords program and data PCMCIA card 2688 Kwords additional data storage PCMCIA card 384 Kwords program |
| Maximum size of object areas | 16384 %Mi located internal bits 30.5 %MWi internal words located internal data 32 %KWi constant words located internal data |
| Application structure | 1 master task 64 event tasks 1 fast task |
| Execution time per instruction | 2.6 µs floating points with PCMCIA card 0.12 µs Boolean without PCMCIA card 0.17 µs Boolean with PCMCIA card 0.17 µs word or fixed-point arithmetic without PCMCIA card 0.33 µs word or fixed-point arithmetic with PCMCIA card 2.5 µs floating points without PCMCIA card |
| Number of instructions per ms | 3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 4.49 Kinst/ms 100 % Boolean with PCMCIA card 4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 6.57 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.29 ms for fast task 1.15 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on the terminal port (TER) |
| Current consumption | 1000 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.52 kg |
| Standards | CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 213 Class I Division 2 Group B 92/31/EEC IEC 61131-2 93/68/EEC 73/23/EEC UL 508 89/336/EEC CSA C22.2 No 213 Class I Division 2 Group D CSA C22.2 No 142 |
|---|---|
| Product certifications | RMRS GL BV LR ABS DNV RINA |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| pollution degree | 2 |
