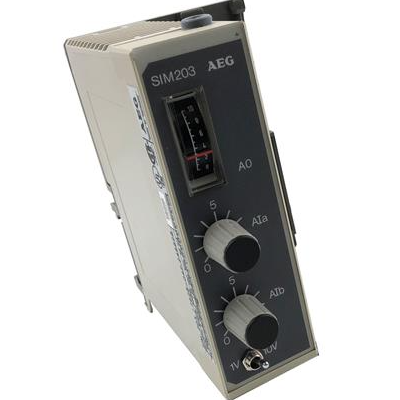

Schneider AS-BSIM-203 Modicon Analog Simulator
Description
| Manufacture | Schneider |
| Model | AS-BSIM-203 |
| Ordering information | AS-BSIM-203 |
| Catalog | Modicon |
| Description | Schneider AS-BSIM-203 Modicon Analog Simulator |
| Origin | Franch(FR) |
| HS Code | 3595861133822 |
| Dimension | 5cm*16.5cm*31cm |
| Weight | 2.5kg |
Details
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | Hot standby module |
| Software designation | Concept >= V2.0 ProWORX 32 NxT V2.0 |
| Product Compatibility | All legacy 140CPU with LL984 language All 140CPU43412A/534 with IEC language |
|---|---|
| Input/output type | 800 Series Sy/Max (remote I/O only) Quantum |
| Transmission Rate | 10 Mbit/s |
| Transmission support medium | Fiber optic 9.8 ft (3 m) |
| Switching time | 13...48 ms |
| Electrical connection | 1 connector RJ45 for fiber optic receiver 1 connector RJ45 for fiber optic transmitter |
| Local signalling | for module in standby 1 LED (amber) for communication with I/O module 1 LED (green) for control process 1 LED (green) for ready module 1 LED (green) for communication error 1 LED (red) |
| Bus current requirement | 700 mA |
| Module format | Standard |
| Net Weight | 2.34 lb(US) (1.06 kg) |
| RFI immunity | 27…1000 MHz 9.1 V/m (10 V/m) IEC 60801-3 |
|---|---|
| Resistance to electrostatic discharge | 4 kV contact 8 kV air |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | US1PC2118150 |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595861133822 |
| Returnability | No |
| Country of origin | FR |
