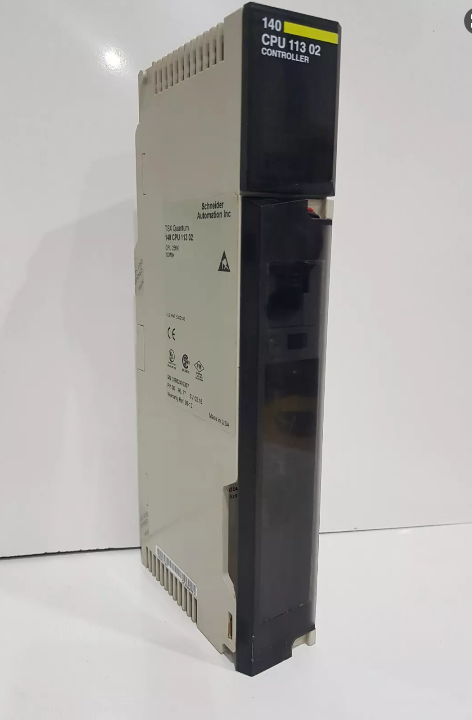

Schneider 140CPU11302 Modicon Quantum Concept processor
Description
| Manufacture | Schneider |
| Model | 140cpu11302 |
| Ordering information | 140cpu11302 |
| Catalog | Quantam 140 |
| Description | Schneider 140CPU11302 Modicon Quantum Concept processor |
| Origin | CE |
| HS Code | 85389091 |
| Dimension | 4.5cm*16.5cm*31.5cm |
| Weight | 0.915kg |
Details
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Processor |
| Software name | ProWORX 32 Concept |
| Processor name | 80186 |
| Mathematical coprocessor | Without |
| Clock frequency | 20 MHz |
|---|---|
| Memory description | Internal RAM 109 kB |
| Exact time for 1 Kinstruction | 0.3...1.4 ms LL984 |
| Watchdog timer | 250 ms |
| Clock drift | +/-8 s/day at 0…60 °C |
| I/O words | 30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote |
| I/O words/network | 500 I/500 O distributed |
| Drops/network | 63 distributed |
| Number of drops | 31 remote |
| Number of network | 2 remote 3 distributed |
| Battery type | Lithium 5 µA 110 µA |
| Battery capacity | 1.2 Ah |
| Battery life | 10 year(s) |
| Number of port | 1 Modbus RS232 1 Modbus Plus |
| Communication module processor capacity | 2 NOM, NOE, CR, NMS |
| Switch function | Without key switch |
| Marking | CE |
| Bus current requirement | 780 mA |
| Module format | Standard |
| Net weight | 0.3 kg |
| Product certifications | cUL FM Class 1 Division 2 |
|---|---|
| Standards | UL 508 CSA C22.2 No 142 |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 915 g |
