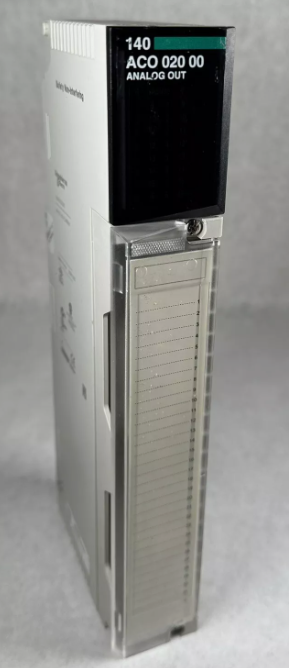

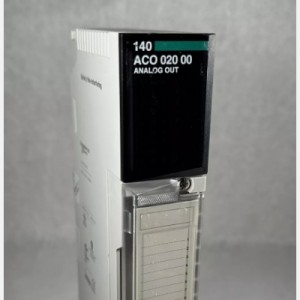

Schneider 140ACO02000 analog output module Modicon Quantum 4 O
Description
| Manufacture | Schneider |
| Model | 140ACO02000 |
| Ordering information | 140ACO02000 |
| Catalog | Quantum 140 |
| Description | Schneider 140ACO02000 analog output module Modicon Quantum 4 O |
| Origin | Franch(FR) |
| HS Code | 3595861133822 |
| Dimension | 5cm*16.5cm*31cm |
| Weight | 0.5kg |
Details
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | Analogue output module |
| Analogue output number | 4 |
|---|---|
| Addressing requirement | 4 output words |
| Loop voltage | 12…30 V DC |
| Maximum voltage drop | <30 V 20 mA |
| Analogue output range | 4...20 mA 0...4096 counts, 12 bits bipolar current |
| Absolute accuracy error | +/- 0.20 % of full scale 77 °F (25 °C) |
| Linearity | +/- 1 LSB |
| Accuracy drift according to temperature | +/- 0.004 % of full scale/°C +/- 0.007 % of full scale/°C maximum |
| Isolation between channels | 500 V 47...63 Hz AC 750 V for 1 minute DC |
| Update time | 3 ms |
| Setting time | 900 µs to +/- 0.1 % of the final value |
| Fault type | Open circuit 4...20 mA |
| Bus current requirement | 480 mA |
| Maximum power dissipation in W | 5.3 W |
| External power requirement | 12...30 V |
| Marking | CE |
| Local signalling | for bus communication is present (Active) 1 LED (green) for external fault 1 LED (red) for channel is turned on 4 LEDs (green) for channel fault 4 LEDs (red) |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| Product Certifications | FM Class 1 Division 2 cUL |
|---|---|
| Standards | CSA C22.2 No 142 UL 508 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
