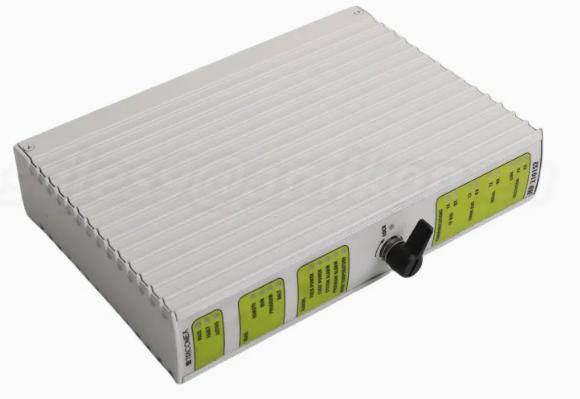

Invensys Triconex MP3101-S2 Main Processor Module
Description
| Manufacture | Yokogawa |
| Model | Main Processor Module |
| Ordering information | MP3101-S2 |
| Catalog | Tricon System |
| Description | Invensys Triconex MP3101-S2 Main Processor Module |
| Origin | United States (US) |
| HS Code | 8537101190 |
| Dimension | 4.3x18.8x21.8cm |
| Weight | 1.56kg |
Details
All Trident Systems are controlled by three Main Processors (MPs), located on a single baseplate, with each module acting on a single channel. Module reference MP3101, this module has:
A Modbus RS-232 or RS-485m port for direct connection to the DCS without the need for an additional module.
A 10BaseT Ethernet port (IEEE 802.3) for connection to the TriStation Workstation.
A locking lever indicates whether the module is properly seated on the baseplate.
A set of visual alarms indicates the module's status, both in operation and when powered on.
