HIMA F7133 4-fold power distribution
Description
| Manufacture | HIMA |
| Model | F7133 |
| Ordering information | F7133 |
| Catalog | HIQUAD |
| Description | 4-fold power distribution |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

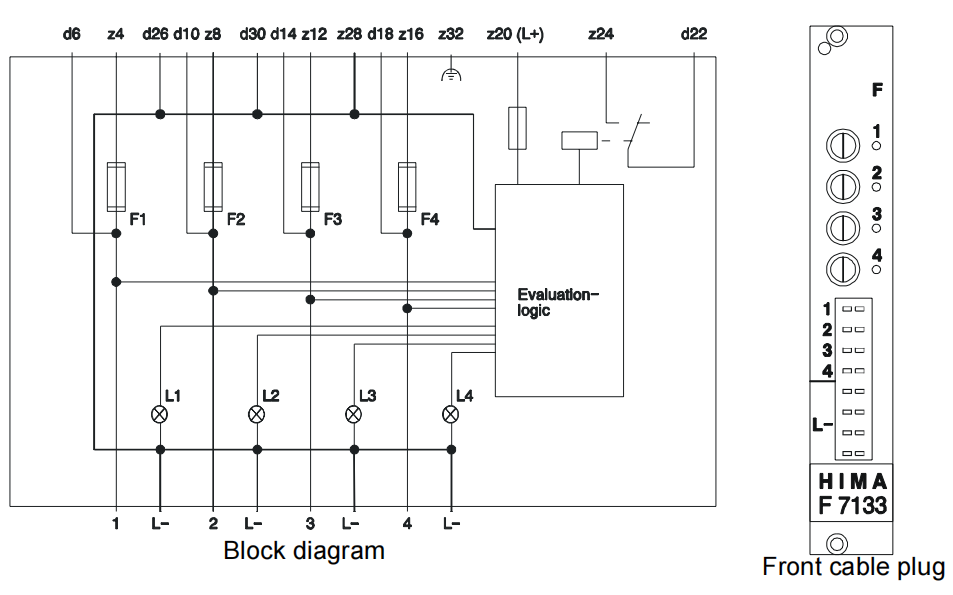

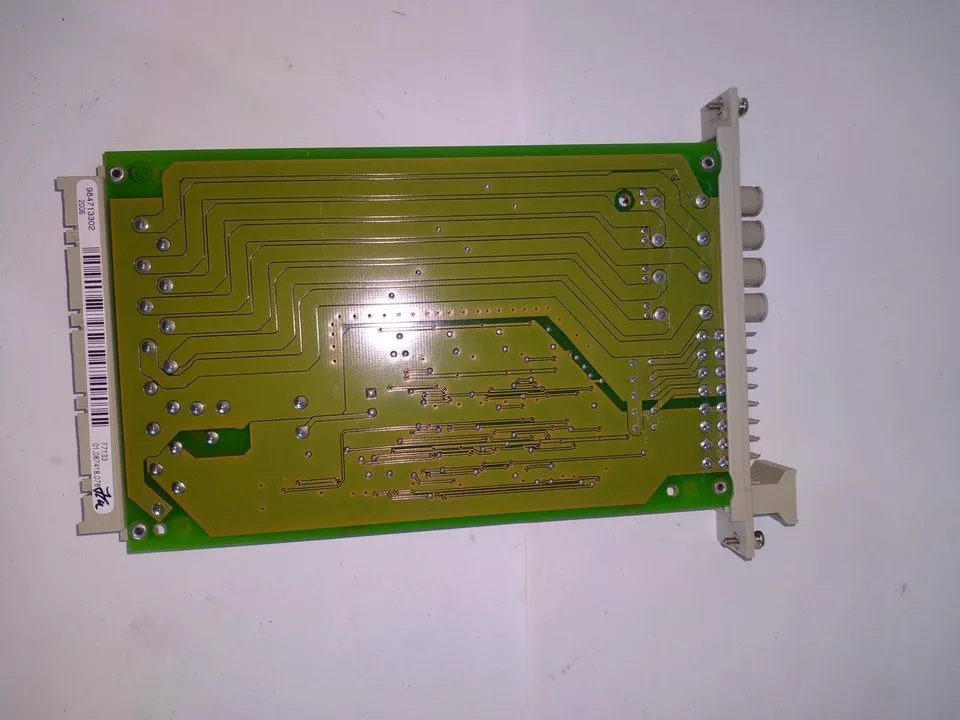

The module has 4 miniature fuses providing the line protection. Each fuse is associated to a LED. The fuses are monitored via an evaluation logic and the state of each circuit is announced to the related LED.
The contact pins 1, 2, 3, 4 and L- on the front side serve to connect L+ resp. EL+ and L- to supply the IO modules and sensor contacts.
The contacts d6, d10, d14, d18 serve as rear terminals for 24 V supply of one IO slot each.If all fuses are in order, the relay contact d22/z24 is closed. If a fuse is not equipped or faulty, the relay will be deenergized. Via the LEDs faults are announced as follows:
