Bently Nevada 3500/77M-03-00 143729-01 Cylinder Pressure I/O Module with Internal Terminations
Description
Manufacture | Bently Nevada |
Model | 3500/77M-03-00 |

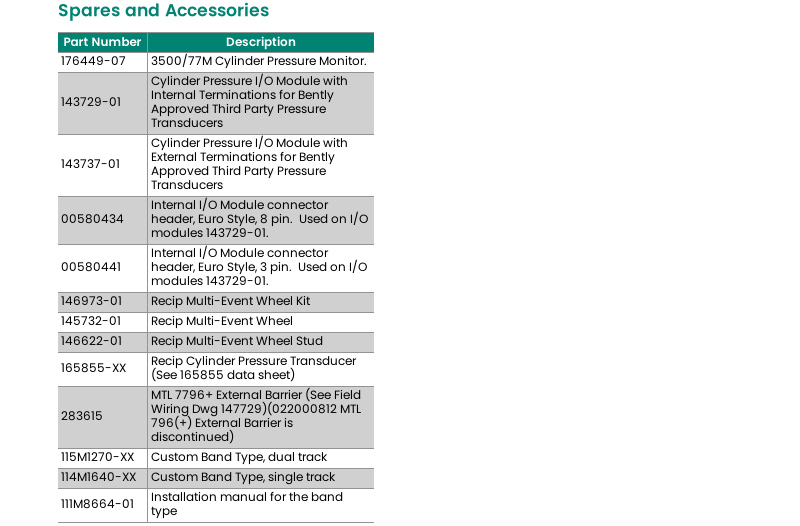

Ordering information | 143729-01 |
Catalog | 3500 |
Description | Bently Nevada 3500/77M-03-00 143729-01 Cylinder Pressure I/O Module with Internal Terminations |
Origin | United States (US) |
HS Code | 85389091 |
Dimension | 16cm*16cm*12cm |
Weight | 0.8kg |
Details
Description
The 3500/77M Recip Cylinder Pressure Monitor is a 4-channel monitor that accepts input from Bently Nevada approved pressure transducers, conditions the signal to make various pressure measurements for reciprocating compressors, and compares the conditioned signals with user-programmable
alarms.
The primary purpose of the 3500/77M monitor is to provide:
l Machinery protection by continuously comparing monitored parameters against configured alarm
setpoints to drive alarms.
l Essential machine information for operations and maintenance personnel.
Depending on configuration, each channel typically conditions its input signal to provide various parameters called measured variables. Users can configure Alert setpoints for each active measured variable and Danger setpoints for any two of the active measured variables.
Each channel of the 3500/77M will provide eight measured variable values that relate to cylinder pressure operation. The five values that relate to a single chamber are as follows:
l Discharge Pressure
l Suction Pressure
l Maximum Pressure
l Minimum Pressure
l Compression Ratio
Three measured variables combine one or more channel values with configured mechanical parameters to compute their value:
l Peak Rod Compression
l Peak Rod Tension
l Degree of Rod Reversal
For more information on the 3500/77M Recip Cylinder Pressure Monitor, refer to the User Guide (document 146282).
