Bently Nevada 3500/15-02-02-00 125840-01 High Voltage ac Power Input Module (PIM)

short description:

Item no: 3500/15-02-02-00 125840-01

brand: Bently Nevada

Delivery time: In Stock

Payment: T/T

shipping port: xiamen

price:$475


Product Detail

Product Tags

Description

Manufacture Bently Nevada
Model 3500/15-02-02-00
Ordering information 125840-01
Catalog 3500
Description High Voltage ac Power Input Module (PIM)
Origin United States (US)
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg

Details

Description
The 3500 Power Supplies are half-height modules and must be installed in the specially designed slots on the left side of the rack. The 3500 rack can contain one or two power supplies (any combination of ac and/or dc) and either supply can power a full rack. If installed, the second supply acts as a backup for the primary supply. When two power supplies are installed in a rack, the supply in the lower slot acts as the primary supply and the supply in the upper slot acts as the backup supply. Removing or inserting either power supply module will not disrupt operation of the rack as long as a second power supply is installed.
The 3500 Power Supplies accept a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. Three Power Supply versions are available with the 3500 Series Machinery Protection System as follows:

AC Power

High Voltage DC Power Supply

Low Voltage DC Power Supply

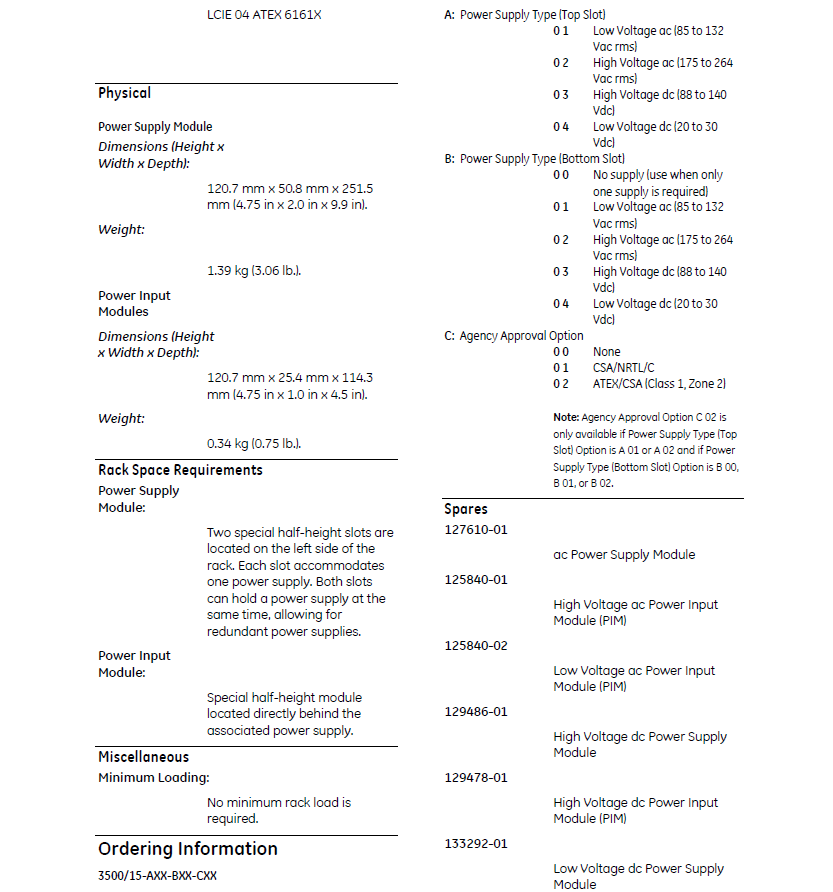

Specifications
Inputs
Voltage Options:
High Voltage ac
This option uses the ac Power Supply and the High Voltage ac Power Input Module (PIM).
Input Voltage
220 Vac nominal
175 to 264 Vac rms
247 to 373 Vac pk
Note: Installations using ac Power Input Modules (PIM) prior to Rev. R and/or AC Power Supply Modules prior to Rev. M require an input voltage of 175 to 250 Vac rms.
Input Frequency
47 to 63 Hz
