Bently Nevada 330171-10-24-05-02-00 3300 5 mm Proximity Probes

short description:

Item no: 330171-10-24-05-02-00

brand: Bently Nevada


Delivery time: In Stock

Payment: T/T

shipping port: xiamen

Product Detail

Product Tags


Manufacture Bently Nevada
Model 330171-10-24-05-02-00

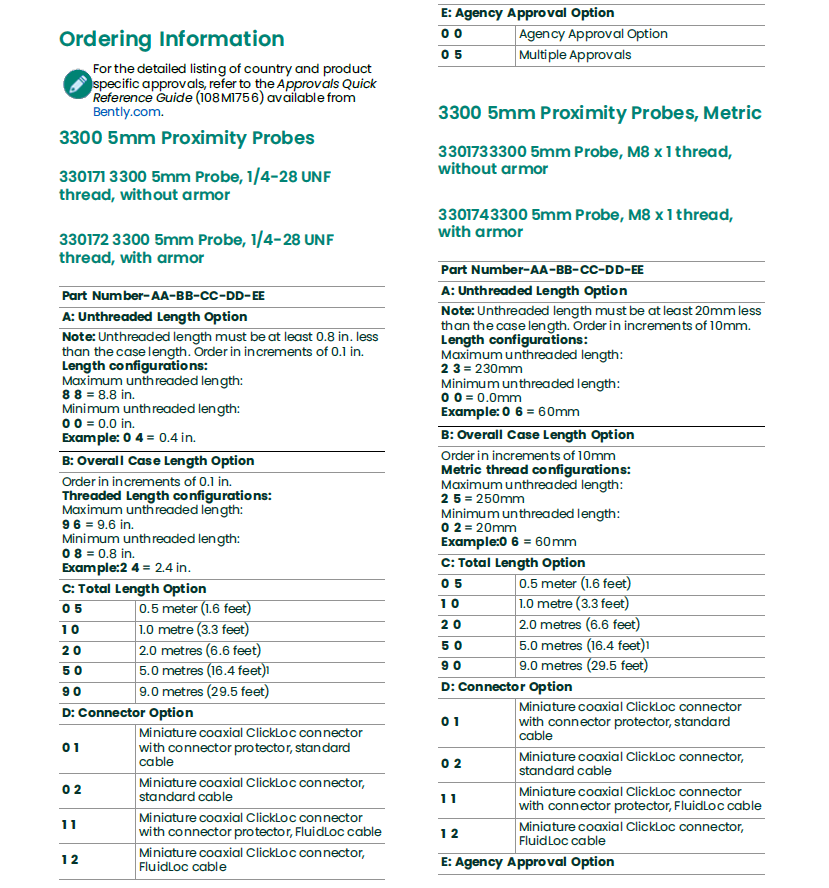

Ordering information 330171-10-24-05-02-00
Catalog 3300 XL
Description Bently Nevada 330171-10-24-05-02-00 3300 5 mm Proximity Probes
Origin United States (US)
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg


Transducer System
The 3300 5mm Proximity Transducer System consists of:
a 3300 5mm probe 1, 2
a 3300 XL extension cable (ref 141194-01)
a 3300 XL Proximitor Sensor 3, 4, 5 (ref 141194-01)
When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. The system can measure both static (position) and dynamic (vibration) data. Its primary use is in vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement applications6.

The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component matching or bench calibration.

Proximity Probe
The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.

The 3300 5mm probe and 3300 XL extension cable have corrosion-resistant, gold-plated brass ClickLoc connectors. These connectors require only finger-tight torque (connectors will "click"), and the specially engineered locking mechanism prevents the connectors from loosening. The connectors require no special tools for installation or removal.
3300 5mm Probes and XL Extension Cables can be ordered with connector protectors already installed, or we can supply the connector protectors separately for installation in the field (such as when the cable must be run through restrictive conduit). We recommend connector protectors for all installations to provide increased environmental protection7.
